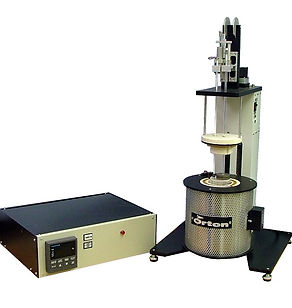

Model ppv-1000 tester for glass viscosity



 Model PPV-1000





General

A laboratory, bench-top system for measuring the viscosity (range log 5 poise to log 9 poise) of solid glass cylinders (6 to 12 mm OD by 3 to 6 mm thick) as a function of temperature below 1000C.

Operate according to ASTM C-1351M.

Includes

  • Bench top instrument console

  • 1000°C furnace

  • Programmable process controller

  • Fused Quartz sample pedestal

  • Fused Quartz load rods

  • LVDT sensor

  • Type "S" thermocouples

  • Counter weights

  • Computer software

  • Accessories and instruction manual. (Computer not included.)

Specifications



Model: PPV-1000

Warranty: 12 Months

Atmosphere: Air

Temperature Range: RT to 1000°C

LVDT Displacement Range: ±0.30 inch (±7.62 mm)

LVDT Sensitivity: ±0.30 inch (±7.62 mm)

Sample Pressure: 100 - 500 grams

Thermocouple: Type "S

Sample Size: 6-12 mm diameter x 3-6 mm thick

Computer Requirements: Windows OS

Power Requirements: 120vac/10amp or 240vac/5amp, 50/60 Hz

Power Control: SSR

Temperature Control: Honeywell UDC 3200 Process controller

Computer Interface Software: Included

SRM Calibration samples: Optional

Bench-top Footprint (stand)Length x Depth x Height: 12 x 14 x 33 (31 x 36 x 84 cm)

Bench-top Footprint (controller)Length x Depth x Height: 18 x 12 x 5 (46 x 31 x 13 cm)
